Are the contacts in this model 'dry'? I want to use the module to momentarily connect a separate 12VDC circuit. (Mimicking a make/break switch.)Already have many FGS211/FGS221 modules which are dry. But want to make sure there is no change of internal circuitry for this module. Z-Wave Fibaro Double Switch 2

Question

Are the contacts in this model 'dry'? I want to use the module to momentarily connect a separate 12VDC circuit. (Mimicking a make/break switch.)Already have many FGS211/FGS221 modules which are dry. But want to make sure there is no change of internal circuitry for this module. Z-Wave Fibaro Double Switch 2

Are the contacts in this model 'dry'? I want to use the module to momentarily connect a separate 12VDC circuit. (Mimicking a make/break switch.)

Already have many FGS211/FGS221 modules which are dry. But want to make sure there is no change of internal circuitry for this module.

Question ID: 4194865 Status: Open Oct 11, 2021 - 09:26 AM

1answer

Answer

Oct 11, 2021 - 09:37 AM

No, they output Switched Live, you can see this from the manual at https://manuals.fibaro.com/switch-2/

For dry contact control we would recommend the Qubino 1D - https://www.vesternet.com/collections...

Alternatively for a low voltage only solution there's the Fibaro Smart Implant - https://www.vesternet.com/collections...

Comments (0) | New Comment

View More Product Details

Are the contacts in this model 'dry'? I want to use the module to momentarily connect a separate 12VDC circuit. (Mimicking a make/break switch.)Already have many FGS211/FGS221 modules which are dry. But want to make sure there is no change of internal circuitry for this module.

Z-Wave Fibaro Double Switch 2

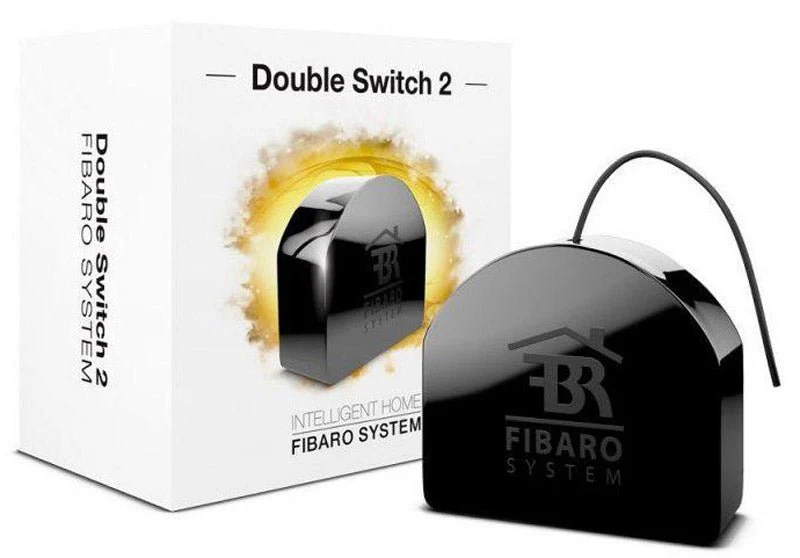

A New Generation of Relay Switch Modules Double Switch 2 was designed to activate and deactivate electrical devices. Thanks to its small size it can be mounted in junction boxes or inside device casings. The module is controlled either through the Z-Wave network or a simple switch. Power and energy ... See More
