I currently have have 1x SRT321 thermostat and 1x SSR303 actuator and ordered a bunch of LC-13 TRV's - however I would need to be able to trigger the boiler if the temperature drops in a room other than where the main SRT321 is located. If I understood the manuals correctly, I shouldn't send the trigger command from my Vera because the SSR303 will go into fail-safe mode if the trigger isn't re-sent within the next hour. So I guess ideally one (or more) SRT321 should be managing the SSR303? So my question is: can multiple SRT321 thermostats be paired with a single SSR303 actuator? Z-Wave Plus Secure Wall Thermostat with LCD display

I currently have have 1x SRT321 thermostat and 1x SSR303 actuator and ordered a bunch of LC-13 TRV's - however I would need to be able to trigger the boiler if the temperature drops in a room other than where the main SRT321 is located. If I understood the manuals correctly, I shouldn't send the trigger command from my Vera because the SSR303 will go into fail-safe mode if the trigger isn't re-sent within the next hour. So I guess ideally one (or more) SRT321 should be managing the SSR303? So my question is: can multiple SRT321 thermostats be paired with a single SSR303 actuator?

Question ID: 4191985 Status: Open Sep 29, 2016 - 06:34 AM

1answer

Answer

Sep 29, 2016 - 07:11 AM

You are creating a multi-zoned system so you should not have the SRT321 associated directly with the SR303 if you plan to have more than one SRT321. If you try associating more than one SRT321 with the SSR303 you will create a conflict where different SRT321s are telling it to do different things.
In this case it is best to run the SRT321 as inputs to scenes and have the scene control the SSR303 and work around the fail-safe feature within the scene. More information is in our guide about multi-zoned heating - http://www.vesternet.com/resources/sc...

Comments (0) | New Comment

View More Product Details

I currently have have 1x SRT321 thermostat and 1x SSR303 actuator and ordered a bunch of LC-13 TRV's - however I would need to be able to trigger the boiler if the temperature drops in a room other than where the main SRT321 is located. If I understood the manuals correctly, I shouldn't send the trigger command from my Vera because the SSR303 will go into fail-safe mode if the trigger isn't re-sent within the next hour. So I guess ideally one (or more) SRT321 should be managing the SSR303? So my question is: can multiple SRT321 thermostats be paired with a single SSR303 actuator?

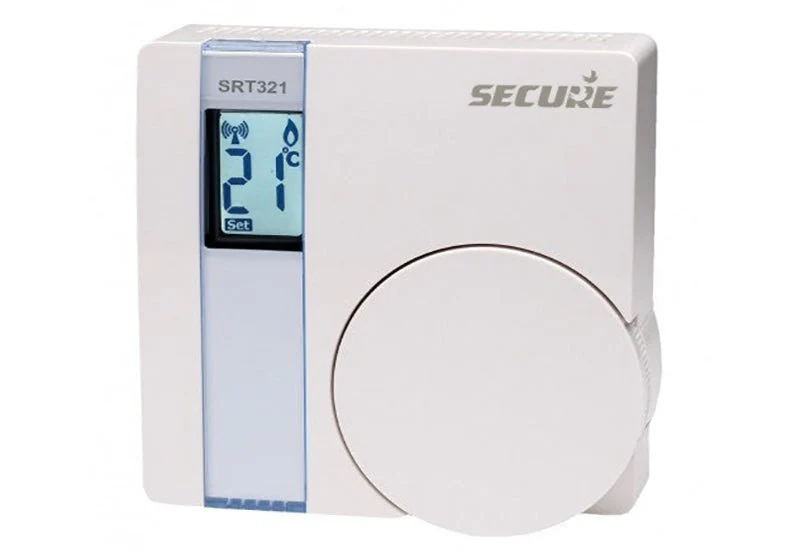

Z-Wave Plus Secure Wall Thermostat with LCD display
