Question

briefly switches on then off when I use the attached physical switch rocker. Have cabled as per diagram for a single switch S1 to switch COM leftmost live to switch Live mains live (old style red) to rightmost live mains neutral (old style black) to N bridged N and Q1. Device is picked up in smartthings though toggle on/off doesn't do anything ... only a brief switch on and off when using attached physical switch rocker. Any ideas? Z-Wave Fibaro Single Switch 2

briefly switches on then off when I use the attached physical switch rocker. Have cabled as per diagram for a single switch S1 to switch COM leftmost live to switch Live mains live (old style red) to rightmost live mains neutral (old style black) to N bridged N and Q1. Device is picked up in smartthings though toggle on/off doesn't do anything ... only a brief switch on and off when using attached physical switch rocker. Any ideas?

Question ID: 4191449 Status: Open Sep 02, 2016 - 09:32 AM

2answers

Answers

Sep 02, 2016 - 10:14 AM

Please speak with our technical support team. You mentioned wiring N to Q1, which suggests that the neutral is connected to the relay's output. This output goes live when the relay is on, potentially causing a short circuit between Live and Neutral. Please check the wiring of your fibaro single switch 2 and confirm that it is correct.

Comments (0) | New Comment

Sep 05, 2016 - 07:00 AM

For support and help with products purchased from Vesternet it's best to raise a Technical Support request using one of the following methods:
1) Click on the "Support" link at the top of any page of the Vesternet web site
2) Complete the form at http://www.vesternet.com/help
3) Email techsupport@vesternet.com
One of our Technical Support team members will be glad to assist you further!

Comments (0) | New Comment

View More Product Details

briefly switches on then off when I use the attached physical switch rocker. Have cabled as per diagram for a single switch S1 to switch COM leftmost live to switch Live mains live (old style red) to rightmost live mains neutral (old style black) to N bridged N and Q1. Device is picked up in smartthings though toggle on/off doesn't do anything ... only a brief switch on and off when using attached physical switch rocker. Any ideas?

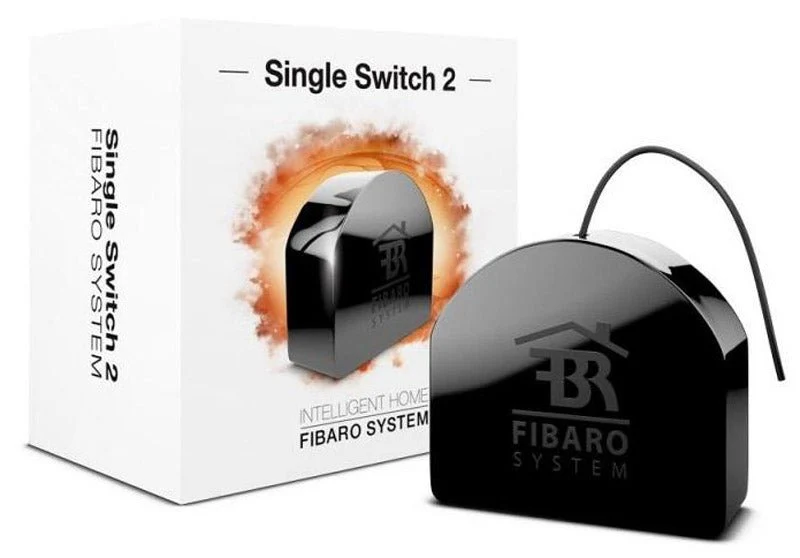

Z-Wave Fibaro Single Switch 2
